HXGN-12 box fixed ac metal closed ring network switchgear
Air insulated switchgear
Scope of application ：
Suitable for industrial and mining enterprises, residential communities, high-rise buildings, school parks and other power distribution systems, rated voltage 12kV, rated frequency 50HZ ac high voltage complete sets of equipment.
product details
HXGN--12 box fixed ac metal-enclosed switchgear ring network(hereinafter referred to as ring network cabinet),it is applicable to industrial and mining enterprises,residential area,high-rise buildings and schools,parks,such as power distribution system,12 kv rated voltage,rated frequency 50 hz ac high voltage equipment unit,is mainly used for three-phase ac ring network,terminal and industrial electrical equipment,distribution network in the power system as the protection of the power distribution equipment,power distribution and control,and so on,has the perfect"five prevention"locking function.It can also be fitted into a box substation.
This product conforms to the requirements of GB3906"3~35kV ac metal enclosed switch equipment",GB/T11022"common technical requirements of high voltage switch equipment and control equipment standard",IEC60298"switch equipment and control equipment with rated voltage above 1KV and 52KV and below",and IEC60694"common provisions of high voltage switch equipment and control equipment".
Ii.Conditions of use
1.Upper limit of ambient air temperature:+40℃,lower limit:-25℃,daily average temperature not exceeding 35℃;
2.The altitude is no more than 1000 meters;
3.The daily average relative environmental humidity is no more than 95%,and the monthly average is no more than 90%;
4,the earthquake intensity does not exceed 8;
5.The daily average steam pressure shall not exceed 2.2kpa,and the monthly average shall not exceed 1.8kpa;
6.Places free from fire,explosion,serious pollution,chemical corrosion and violent vibration.
Note:users can negotiate with us if the above conditions are exceeded.

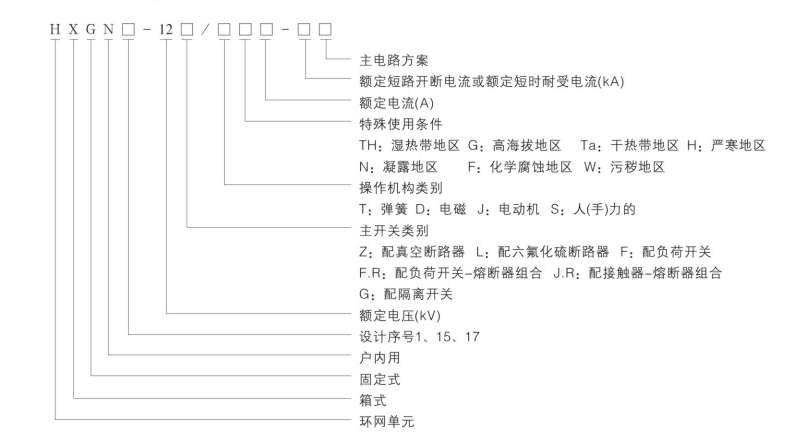

Iii.Model meaning
4.Structural features
fully assembled structure,lightweight and beautiful,can be assembled at will,for unlimited extension.
it can be equipped with model fn12-12 compressed air load switch and combination electrical appliances,as well as model fzn25-12 vacuum load switch and combination electrical appliances.
small size,maintenance-free,three-phase linkage structure,with obvious isolation fracture.
load switch,combination of electrical appliances,flexible installation,can be left and right side,formal,inverted(FZN25 not inverted).
manual and electric operation,remote control function.
with perfect and reliable mechanical linkage and interlock device,the function of"five prevention"is fully achieved.
A.when the load switch closes,the ground switch cannot close and the front door cannot be opened;
B.When the load switch is on,the ground switch can be closed.When the ground switch is on,the front door can be opened;
C.When the ground switch closes,the load switch cannot close,and the front door plate can be opened;
D.When the ground switch is on,the load switch can be on and off,and the front door plate cannot be opened;
E.No matter the load switch is at the closing or opening position,the electromagnetic lock controls the front door plate when the cable enters the wire under the cable,and it cannot be opened.(except emergency unlock with special key)
the load switch adopts linkage protective insulation valve or transparent insulation cover to cover the live contact and ensure personal safety.
positive operation and maintenance,reliable wall installation.
the front door is equipped with observation window,which can clearly observe the working condition of the components inside the cabinet.

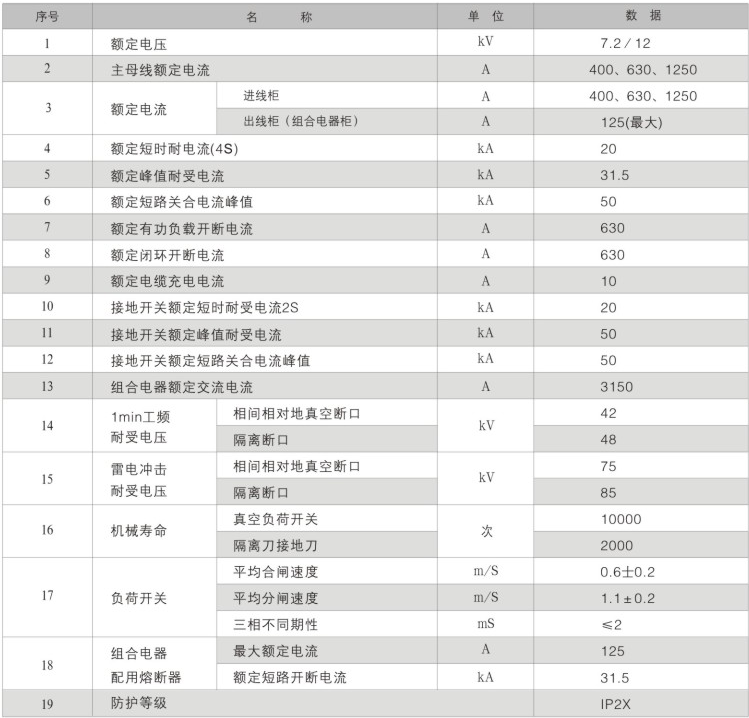

Technical parameters
Instructions for ordering
1.Main circuit scheme diagram or main circuit system diagram;
2.Control circuit electrical schematic diagram,terminal arrangement diagram;
3.Switchgear layout plan;
4.Color of cabinet(according to company standard if not required);
5.List of components inside the cabinet(including name,specification,model and quantity of components);
6.List of necessary spare parts;
7.If you have any special requirements,please provide details.
